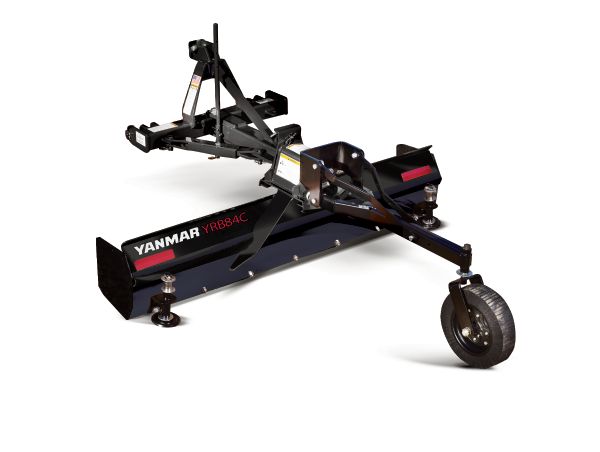

Quick & easy.  Rear Blades | Possibly the most popular three-point-mounted implement ever invented. Scrape, grade and level almost any playing field. Quickly and easily adjust the angle, tilt, angle and offset to make short work of any job.

DOWNLOAD A SPEC SHEET

MODELS
MODEL YRB54S YRB60C YRB60S YRB72C
DUTY Standard Standard (premium) Standard Standard (premium)
Tractor PTO HP up to 30 HP 20-45 HP up to 30 HP 20-45 HP
Hitch Cat. / Type Limited Cat 1 & Cat 1 Cat 1 Limited Cat 1 & Cat 1 Cat 1
Approximate Weight (lbs.) 134 268 142 288
Quick Hitch Compatible Yes Yes Yes Yes
Working Width (in.) 54" 60" 60" 72"
Reversible Cutting Edge (in.) 3/8 x 6" 1/2 x 6" 3/8 x 6" 1/2 x 6"
Moldboard Height (in.) 12" 15" 12" 15"
Moldboard Thickness (in.) 3/16" (grade 80 steel) 1/4" (grade 80 steel) 3/16" (grade 80 steel) 1/4" (grade 80 steel)
Pivot Angle Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees
Skid Shoes Optional Optional Optional Optional
Parking Stand Optional Optional Optional Optional
Tilt   up to 15 degrees   up to 15 degrees
Offset   up to 12" left or right   up to 12" left or right
End Plates   Optional   Optional
MODEL YRB72S YRB84C
DUTY Standard Standard (premium)
Tractor PTO HP up to 30 HP 20-45 HP
Hitch Cat. / Type Limited Cat 1 & Cat 1 Cat 1
Approximate Weight (lbs.) 156 308
Quick Hitch Compatible Yes Yes
Working Width (in.) 72" 84"
Reversible Cutting Edge (in.) 3/8 x 6" 1/2 x 6"
Moldboard Height (in.) 12" 15"
Moldboard Thickness (in.) 3/16" (grade 80 steel) 1/4" (grade 80 steel)
Pivot Angle Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees Forward - 5 @ 15 degrees, Reverse - 5 @ 15 degrees
Skid Shoes Optional Optional
Parking Stand Optional Optional
Tilt   up to 15 degrees
Offset   up to 12" left or right
End Plates   Optional
